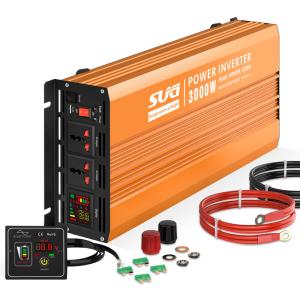

100kva Vector PV Power Inverter 3kv Checker Converter Inverter

Brand Name : SUG

Model Number : SGPE-3000W

Certification : CE & ROHS & FCC & PSE & ISO

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, Paypal,Alipay

Supply Ability : 10000pcs/month

Delivery Time : 15-20days

Packaging Details : Carton

Model : SGPE-3000W

Rated Power : 3000W

Surge Power : 6000W

Input Voltage : 12V/24V/48V(provide input voltage customization)

USB Port : 5V 1A

Output Voltage : 110/220VAC(provide output voltage customization)

Output Frequency : 50HZ or 60HZ

Output Waveform : Pure Sine Wave

Efficiency : 94% Max.

Product Size : 41*21.6*15.6cm

Meas : 56.5*30.8*24cm /1 pcs

N.W./Unit(kg) : 9kg

G.W./Ctn(kg)21KGS : 11.1KGS

Warranty : 2 Years(start when you sell to your customer)

Contact Now

Inverters 100kva Vector Inverter 3kv Inverter Inverter Checker Converter Inverter Cosuper Inverter

This unit is ideal for air-conditioner, pump, microwave oven, refrigerator, coffeemaker, air compressor, electric motor saw, dust collector, TV set, video game, CD player, DVD player, cellular phone chargers and much more!

Model	SGPE3000A-121	SGPE3000A-122	SGPE3000A-241	SGPE3000A-242	SGPE3000A-481	SGPE3000A-482
Rated Power	3000W
Surge Power	6000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
Working Temperature	-10℃ - +50℃
Net Dimension	4121.615.6cm (L×W×H)
Meas./Ctn	56.530.824cm /1 pcs
N.W./Unit	9kg
G.W./Ctn	11.1KGS
Packing	Carton
Warranty	2 Years

100kva Vector PV Power Inverter 3kv Checker Converter Inverter
